1. Q:
    2. How do I create a custom service on my DSR-series router?
    1. A:

    2. In order to configure your DSR router, you must log in to the Web Interface of your router - How do I log in to my router?



      Select your Configuration Interface:



      OLD GUI





      NEW GUI









      Old GUI



      Step 1: Click on the Advanced tab. On the left side click on Firewall Settings > Custom Services.





      Step 2: Click Add.

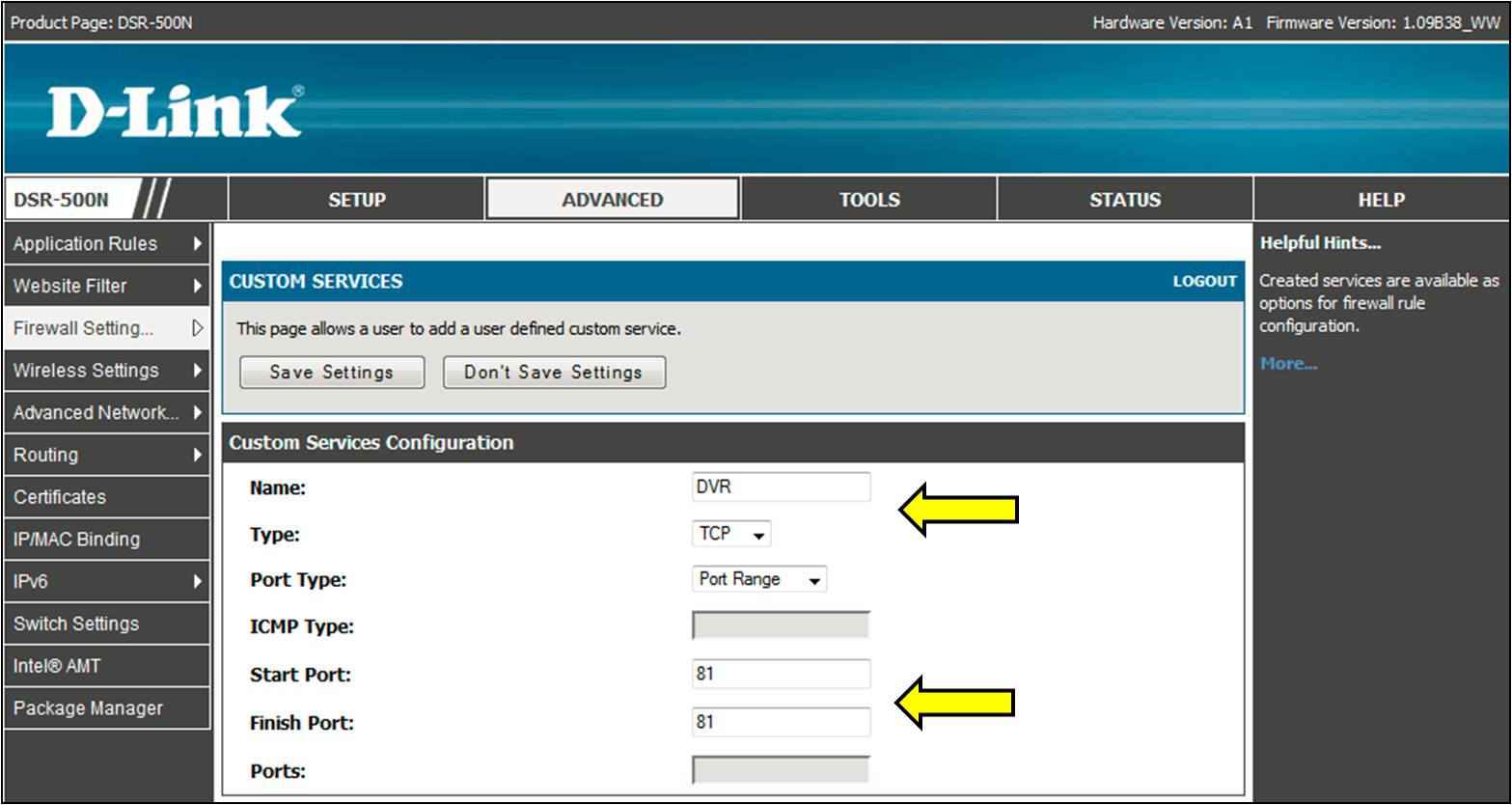

      Step 3: Configure your custom Service:





      - Name - Enter a name for the service (i.e. NVR)

      - Type - Select the Port type (TCP/UDP)

      - Port Type - Select your desired port type

      - Start Port - The 1st port you want to open/forward

      - End Port - The last port you want to open/forward



      Note: If only entering one port, enter the same port number in both the start and end port fields.



      Step 4: Click Save Settings.









      New GUI

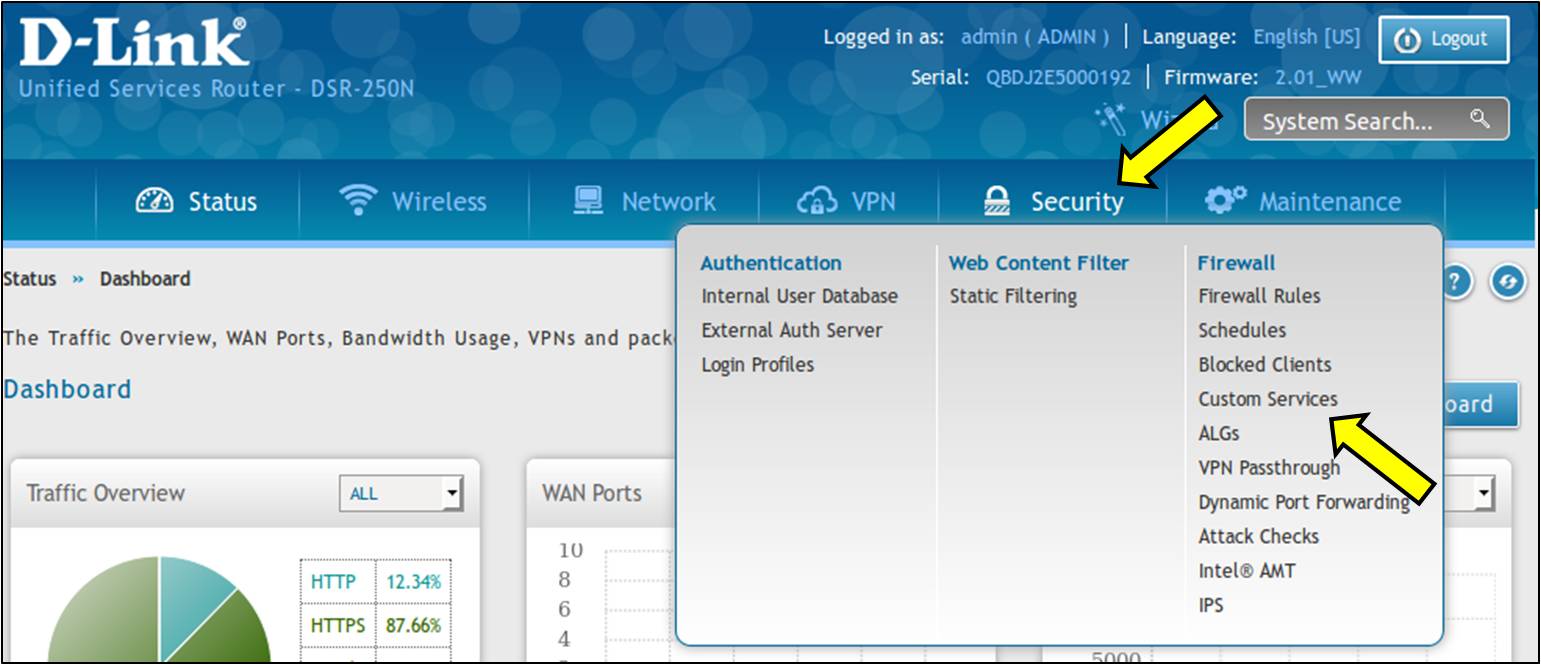

      Step 1: Click on the Security tab. Under Firewall click Custom Services.

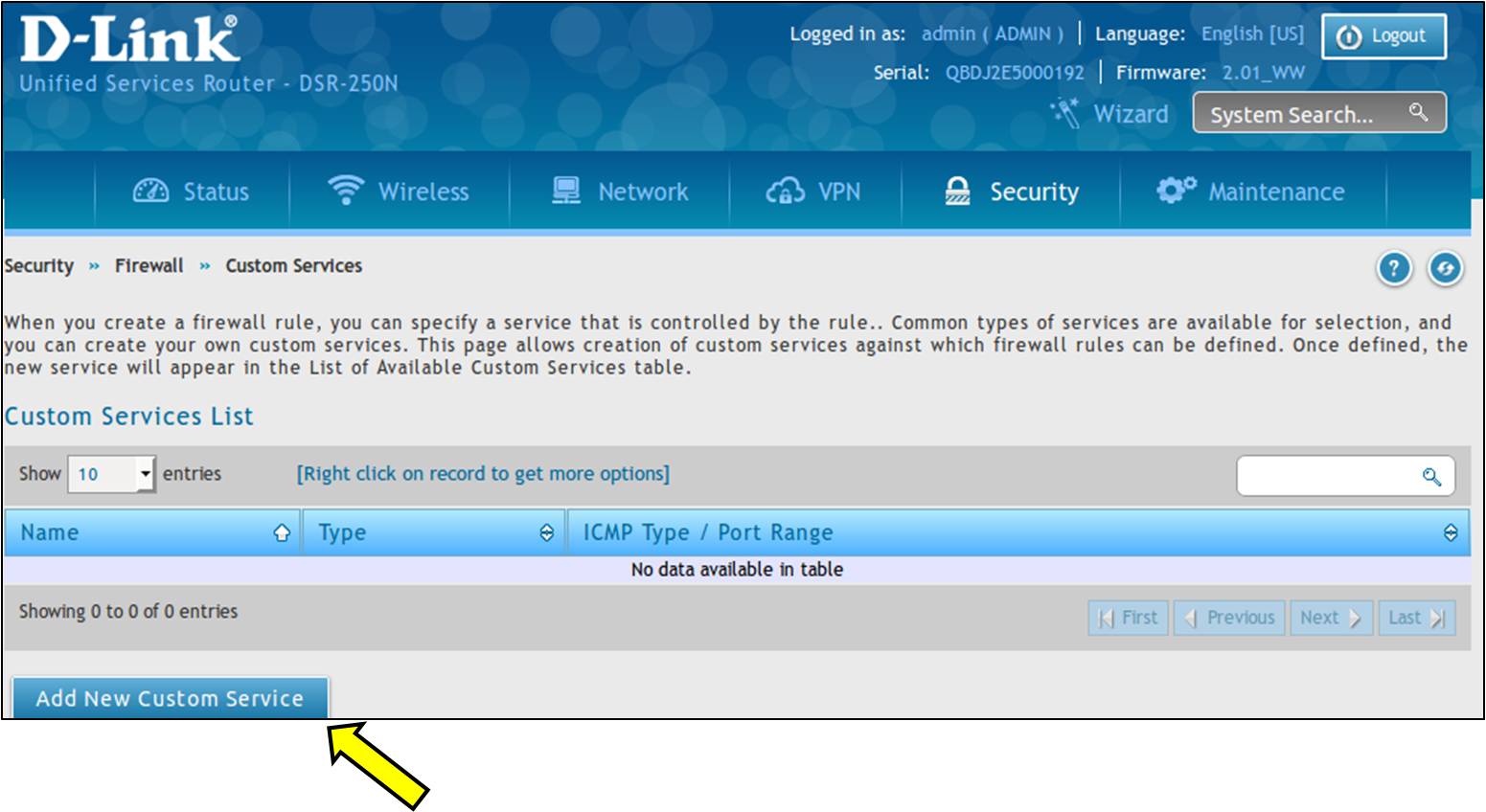

      Step 2: Click Add New Custom Service.

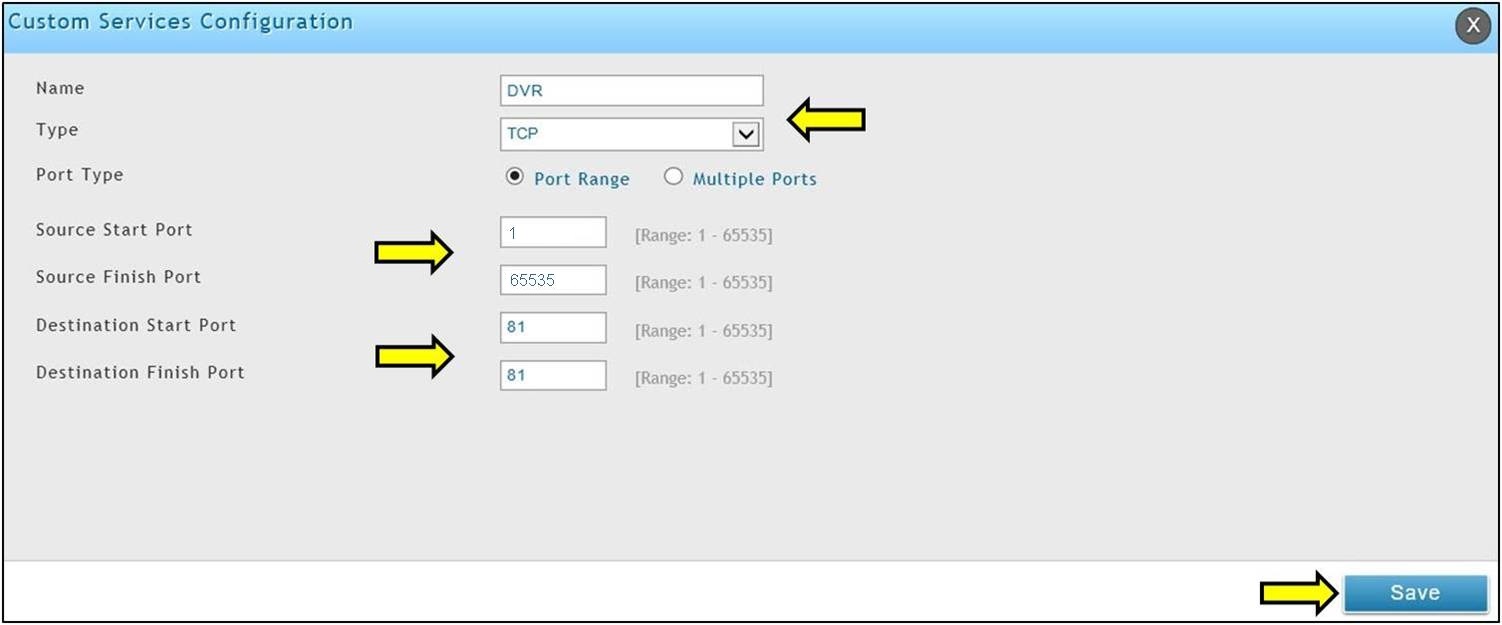

      Step 3: Configure your custom Service:





      - Name- Enter a name for the service (i.e. NVR)

      - Type - Select the Port type (TCP/UDP)

      - Port Type - Select your desired port type

      - Source Start Port - Enter Port 1

      - Source Finish Port - Enter Port 65535

      - Destination Start Port - The 1st port you want to open/forward

      - Destination Finish Port- The last port you want to open/forward



      Note: If only entering one port, enter the same port number in both the start and end port fields



      Step 4: Click Save.
